Segmentlängen als Excel Export um Baugrubenpolygone für Baugrubenaushub-Automatisierung

Hallo, ich bräuchte Hilfe bzgl. der Polygonlängen - Messung in Revu 21.

Ich habe eine automatisierte Baugrubenkalkulation in Excel aufgestellt, in der ich anhand der Polygonfläche des Gebäudegrundrisses die Volumina und Flächen ermittelt bekomme.

Aktuell tippe ich die Koordinaten in Excel händisch ein, welche ich von PDF XChange mittels X und Y Koordinaten in meine Tabelle übertrage.

Jetzt wäre es super smart, wenn ich die Polygonform der Baugrube in Revu 21 mittels Polygonumfang eingrenze und das Programm mir per Excel Export die einzelnen X und Y Koordinaten anhand eines Maßstabs ausspucken kann.

Es wäre super, wenn mir hier in der Community jemand helfen kann.

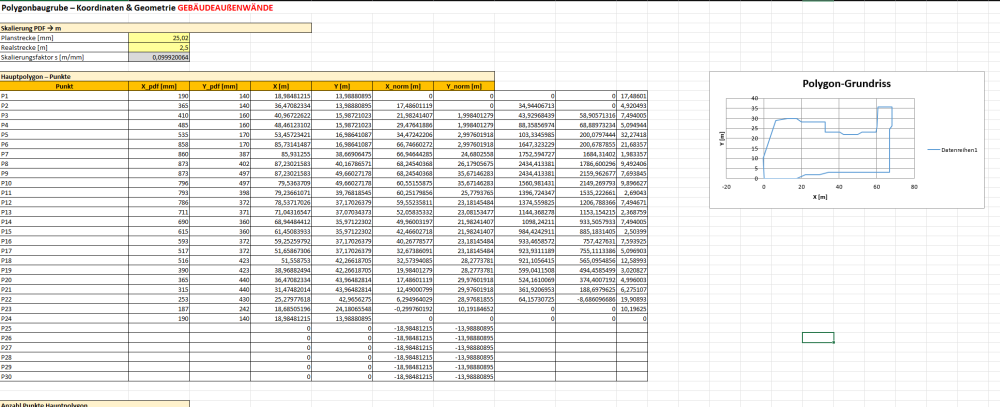

Meine Eingabe Tabelle in Excel sieht wie folgt aus:

Ich ermittle die Fläche anhand der Gaußsche Trapezformel für Polygonflächen

Find more posts tagged with

Revu

Markups

Accepted answers

All comments

Don Walke

Wow, that's a mouthfull.

rfleischmann

Bei den Versionen Revu 19 und 20 konnte man noch die einzelnen Segmentlängen der Polygonmessung inkl. Winkel und ΔX, ΔY als CSV exportieren.
