Hi Bluebeam.

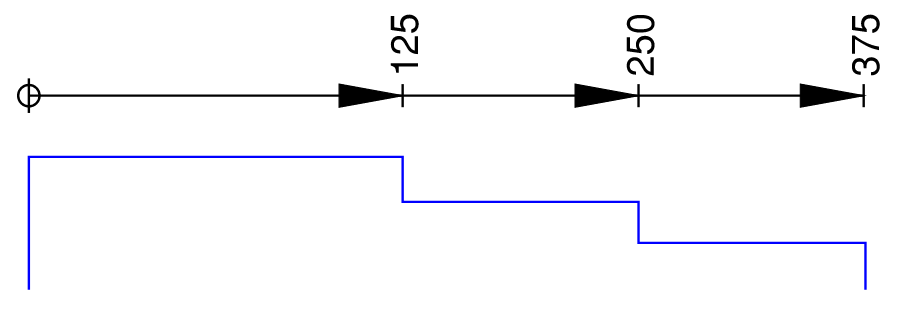

Isn't it possible for you to make a continuous measurement like the one shown?
regards
Claus

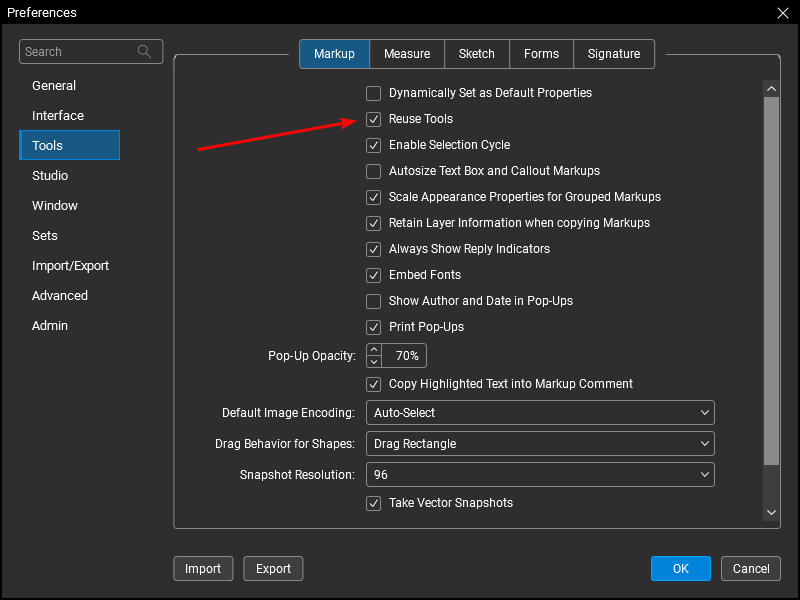

@CLJE, This is how I would achieve this. Make sure you enable "Reuse Tools" under Preferences > Tools > Markup.

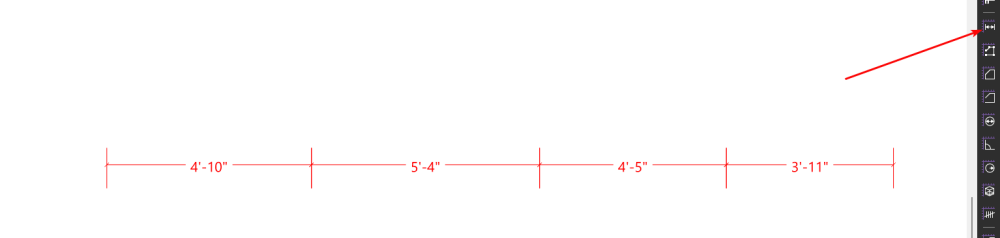

Make your first measurement, then double-click and continue double-clicking at each measurement point. (Tip, hold the shift key to keep the measurements in a straight line.)
Hope this helps!
Are you looking for a polyline sketch to scale?

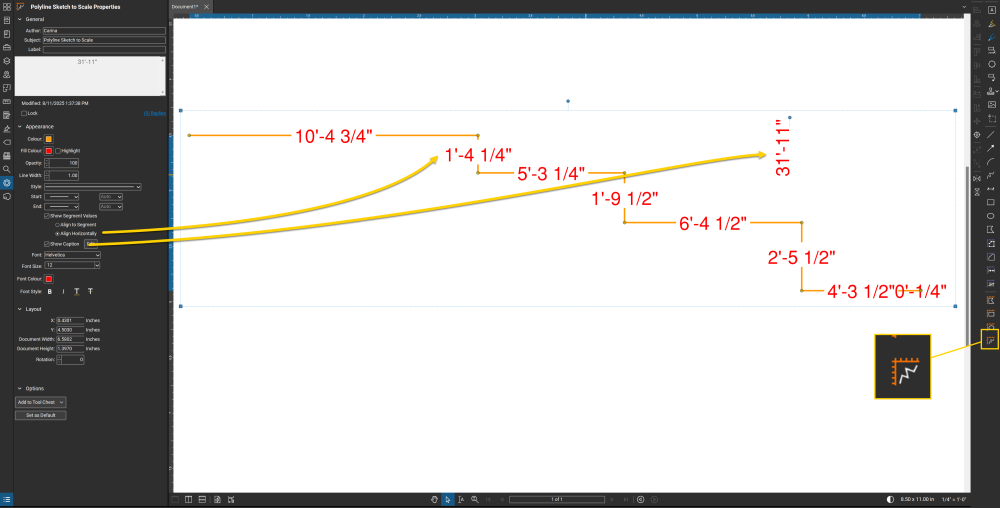

I turned on segments to be horizontal here. And Show Camption to get the full length (that is horizontal + vertical though)
Hi Carina.
No that's not it unfortunately. I already tried that.
Hi Shaya.
That unfortunately does not solve my problem. The problem with your solution is that, when the measurements are closely spaced, then the number will collide.
I think that the only way that you'll achieve that is to do three separate markups - one on top of another.

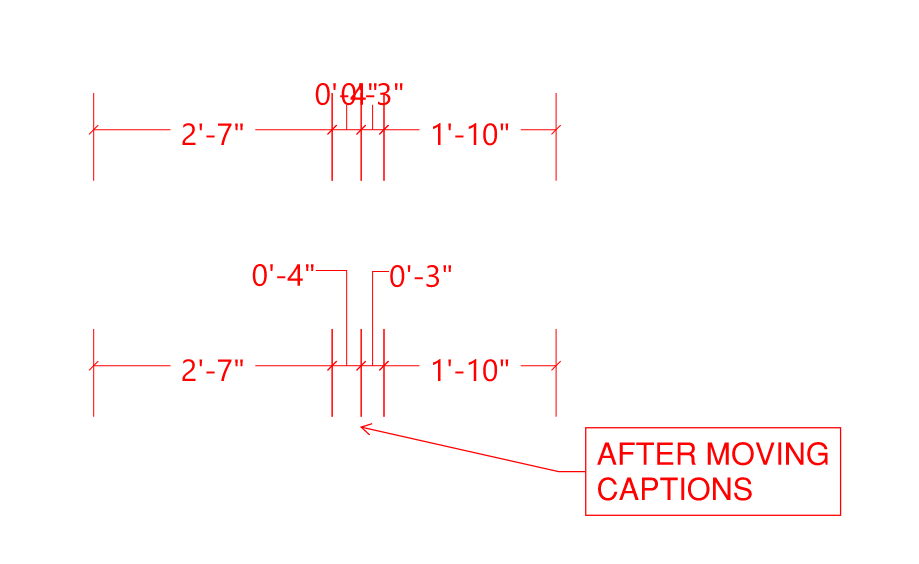

@CLJE, If the markups overlap, you can move the captions.
To move captions:
https://support.bluebeam.com/online-help/revu21/Content/RevuHelp/Unsorted/Editing-Markups-MV.htm
