Quantity Takeoffs: How to check work with multiple scales across multiple sheets

I would like to start out by saying I am a relatively new user on Bluebeam who has been strictly using it for quantity takeoffs for exterior cladding. I have done a deep dive or even begun to grasp the resources or features at my disposal, so if my question seems basic that's just my understanding level right now.

I do almost all my takeoffs from client sent PDF architectural drawings. Depending on sheet detail there are multiple scales across different sheets which is typical(elevations, wall sections and partial floor plans).
I like to use all this information to come up with accurate takeoffs for budgetary pricing. But I am having trouble checking my work because I am getting different lengths and area measurements for the same space on different sheets.

What am I doing wrong?

Yes they are different scales and I am sure it is because I am a novice Bluebeam user, but I would love some help.

Find more posts tagged with

Revu

Takeoffs

Accepted answers

All comments

Jason Artley

This can be tricky, but you've come to the right place!

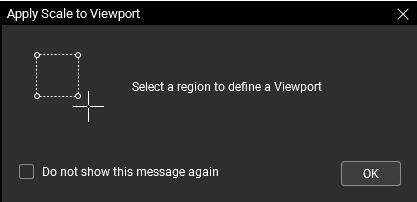

The key to working with multiple scales per sheet is to utilize Viewports. Using the Measurement Panel, you'll see a Viewports section at the bottom. Click the + sign, and you'll be prompted to select a region to apply a scale to. This scale can be different than the rest of the sheet. Any measurements placed in that area will use the viewport scale.

Doug McLean

I never take off the same area on different sheets, mostly because I don't trust that the drawings are scaled correctly. You should also never fully trust the scale that is shown on the page. Trust but verify is the workflow here. Always do a quick measurement of a known item to see if the scale is correct.

Do your takeoffs from the smallest scale possible and you SHOULD be ok; 3/8" to 1' or 1/2" to 1' is usually pretty good. That being said, I do do Takeoff on RCP's which is generally a lot bigger than that, but I'll never do a takeoff on an RCP and an Enlarged RCP (for example). I'll use the Enlarged plan only.
Revu is a computer and as such it doesn't really make math errors, so it will add things up correctly as they are sorted. There is really no need to double check your work on another plan type.
